RFID Windshield tag

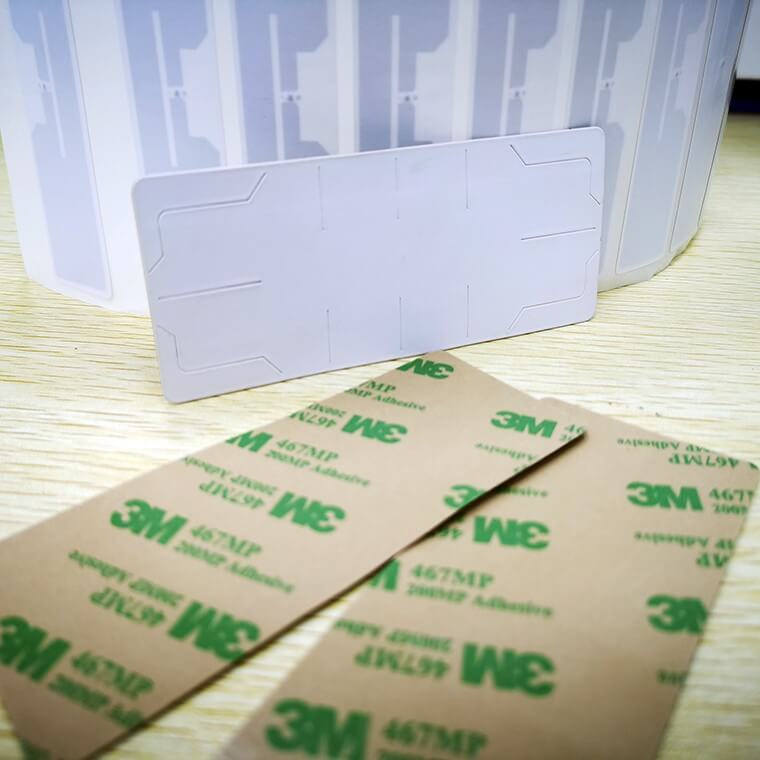

WIND 3.jpg860MHz to 960MHz UHF Windshield Tag

RFID windshiled tag is specifically designed for vehicle identification management.It can be attached to the inside of the windshield inside.The tag can work stably without influence of heat and proof membrane.


The windshield tags can provide speedy, accurate identification, authentication, and management of vehicles for different places, such as residential communities, government offices etc.

Main features:

 Small size and light weight

 High perfornance NXP UCODE G2XM/ Impinj M4QT /Alien H3,H4 chip

 High security: UID, write protection, EAS

Multiple tags operation allowed

Advanced RFID tag production technology ensured outstanding quality

Green products, ROHS, SGS compliance

Technical Specifications:

Frequency :860~ 960 Mhz

Protocol :ISO18000-6C & EPC global Class I Gen 2

Chip:NXP UCODE G2XM / Impinj M4QT /Alien H3


H3

H4

G2XM

M4QT

User

512 bit

128 bit

512 bit

512 bit

EPC

96 bit

128 bit

256 bit

128 bit

TID

96 bit

64 bit

96 bit

64 bit


Read range:more than 8.0M(related to reader performance and working environment) Date retention:100000 cycles

Inlay Material:PET+AL

Outer Material: Copper paper /PET

Size: 100*40 mm(customerized)

Operating Temp:-20~+50℃

Storage Temp:-40~+100
