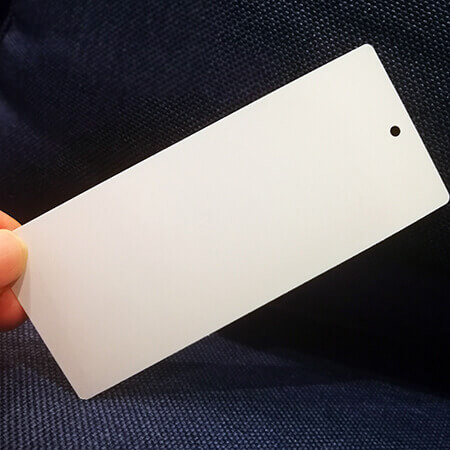

UCODE 8 Hangtag



RFID Hangtag based on NXP UCODE 8

Noah Intelligent launched UHF garment tag based on NXP UCODE 8 chip. This label is developed independently to meet the needs of market development. It has stable performance and meets the requirements of specific working environment.

The tag can be used in a frequency range of 902MHz-928MHz. The tag chip contains an automatic tuning mechanism and a conflict-proof mechanism. It has excellent environmental practicability. Tag performance is improved by the “self-adjust” feature: The chip always tunes itself according to the substrate and environment materials. The UCODE 8 always reaches maximum performance and reading range, whether it is applied to fabrics, leather, plastics, or metal. It also adjusts to the different UHF frequency ranges being used in North America and Europe.

Application: Logistics, Warehouse Management, Retail


[Product parameters]



Chip: NXP UCODE 8

Standard protocol: ISO-18000-6CEPC Class 1Gen 2

Working frequency: Global (860 - 960 MHz)

Read-write distance: 0-6m

Reading and writing time: 1-2 MS

Working Temperature: - 20 ~85

Erase life: > 100,000

Data Preservation: > 10 Years

Shape size: 115*45mm (Customized)

Packaging materials: PVC, PET, paper

EPC Memory: 128 bit

TID Memo: 96-bit Tag IDentifier (TID) factory locked

48-bit unique serial number factory-encoded into TID

Inlay size:70*14mm/50*30mm/42*16mm(Customized))
