Protocol standard

ISO14443A

Operation Frequency

13.56Mhz

Reading range

about 1~5cm  (vary from different reader and environment)

Chip Model

Ultralight, Ultralight EV1, Ntag203/213/215/216,S50/F08

user Memory

384bits,1024bits,144/504/888 Bytes,1024BYTES

Antenna Material

Aluminum etching antenna

Process

Flip chip

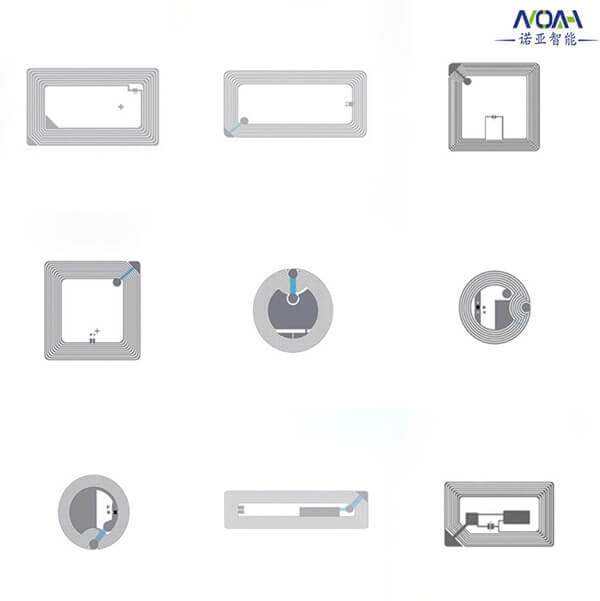

Inlay size

Label size

21mm diameter

25/30mm diameter

Surface Material

80g coated paper

Release paper

White glassy paper

Life Time

10 years

Operating Temp

-40 - +80℃

Applications

Mobile payment & e-payment

Loyalty system for promotion

Ticketing management
